daytime running light from China manufacturer - Hongkong Yangdi International Limited.

Price:	10.0~20.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YD-008

Production Capacity: 10000 sets/ month

Delivery Date: within 7 days after getting...

Material: LED

certifications: CE, RoHS

service: good

Means of Transport: Ocean,Air

Packing: box,paper box,polybag or cu...

Type: Headlight

Brand Name: YangDi

warranty: 3 years

usage: for car lights

daytime running light
voltage:10v-16v
current: 1.4A
power:1W per bulb

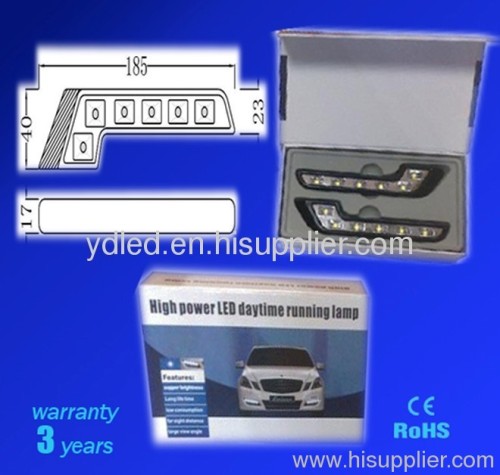

Auto LED Daytime Running Lights,
I—Stays on whenever the car is on
1. Rated operational voltage:DC 10V—16V
2. Rated total working current:DC 1.4A
3. Rated Total Power consumption:12.4W
4. Maximum operating voltage:DC 24V lasting for up to 1 hour
5. Excess working voltage:DC 18V lasting for up to 1 hour
6. Continuous operating time≥24hours ,current fluctuation≤±2mA
7. Maximum surface temperature(shell)≤60℃(at ambient temperature of 20℃)
8. Color temperature limit 6000K-8000K
9. Power 1W(LED/per)

The control system will stop working automatically to protect the control module from damage when the power voltage is higher than 15.5V, then LED light only works by the outer power directly;

2). Low-Voltage Protection:

The LED light will shut off to protect the system once the voltage is lower than 9v;

3). Lose-Frequency Protection:

The LED light shut off once the control frequency is abnormal to protect the control module and LED light.

4).Wrong-Connection Protection:

Itis no harmful to circuit when the three cables of LED were connected incorrectly.The LED light is off when connection is wrong, it will be on when connection is right.The three cables of LED light are VBB, Vss and VC respectively.
